96" FHWA/DOT Elongated Turn Arrow Stencil

In stock
SKU: 5343-096
$195.36

96" FHWA/DOT Elongated Turn Arrow Stencil SKU: 0343-096

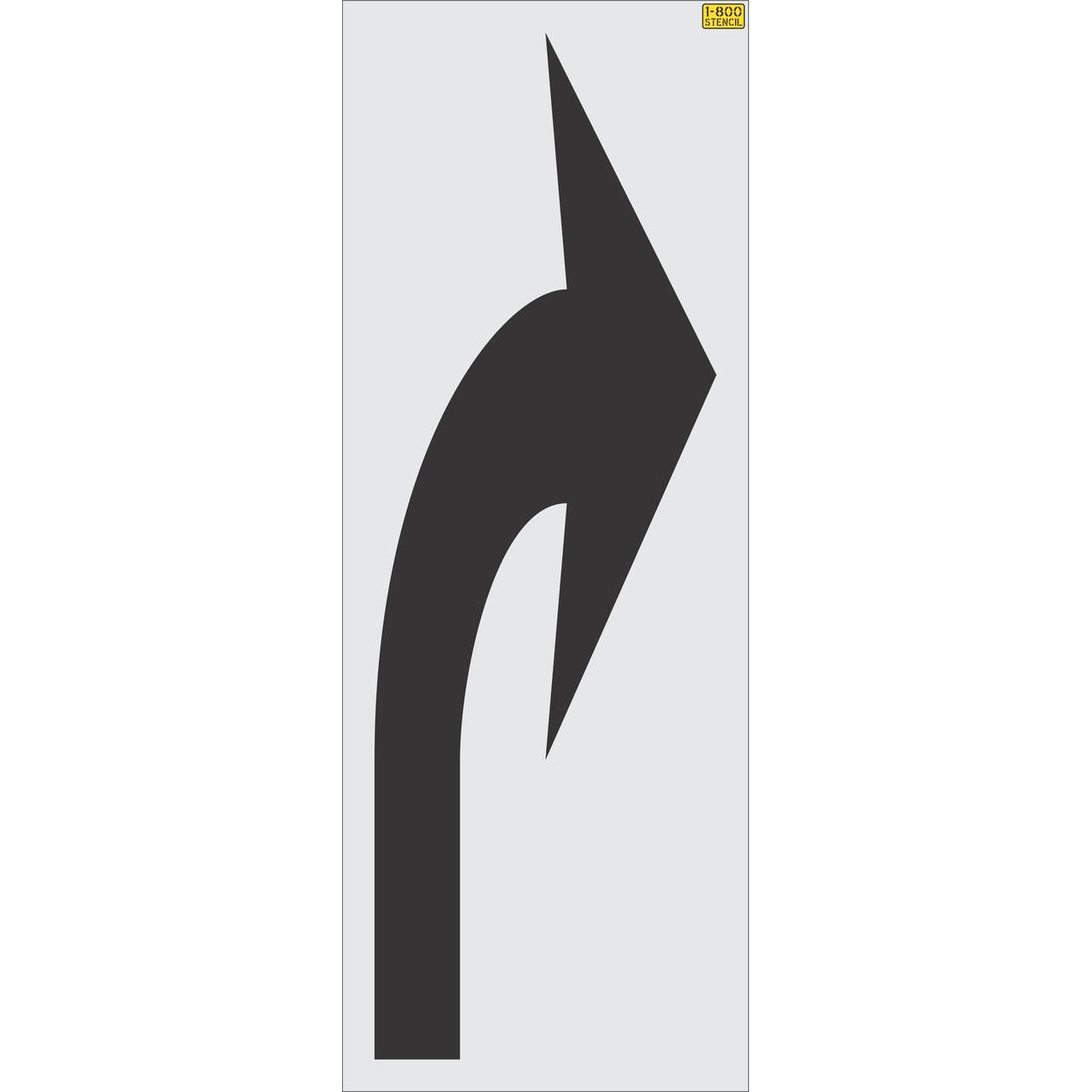

The 96 inch Elongated arrow stencil is a newer designs from the FHWA (Federal Highway Administration), it is designed to be narrower than the wheelbase of a car so that there is less wear on the marking. The elongated turn arrow is cut without the standard bridging (strips that hold the stencil together) in order to make it more visible once painted. If you wish to have it made with bridging for ease of use, we can make it that way. Just give 1-800-Stencil a call and we will help you out. All 1-800-Stencil’s are professional quality and made from either Light or Pro-Grade LDPE, Aluminum, or optional HDPE plastic to all last for years of professional use.

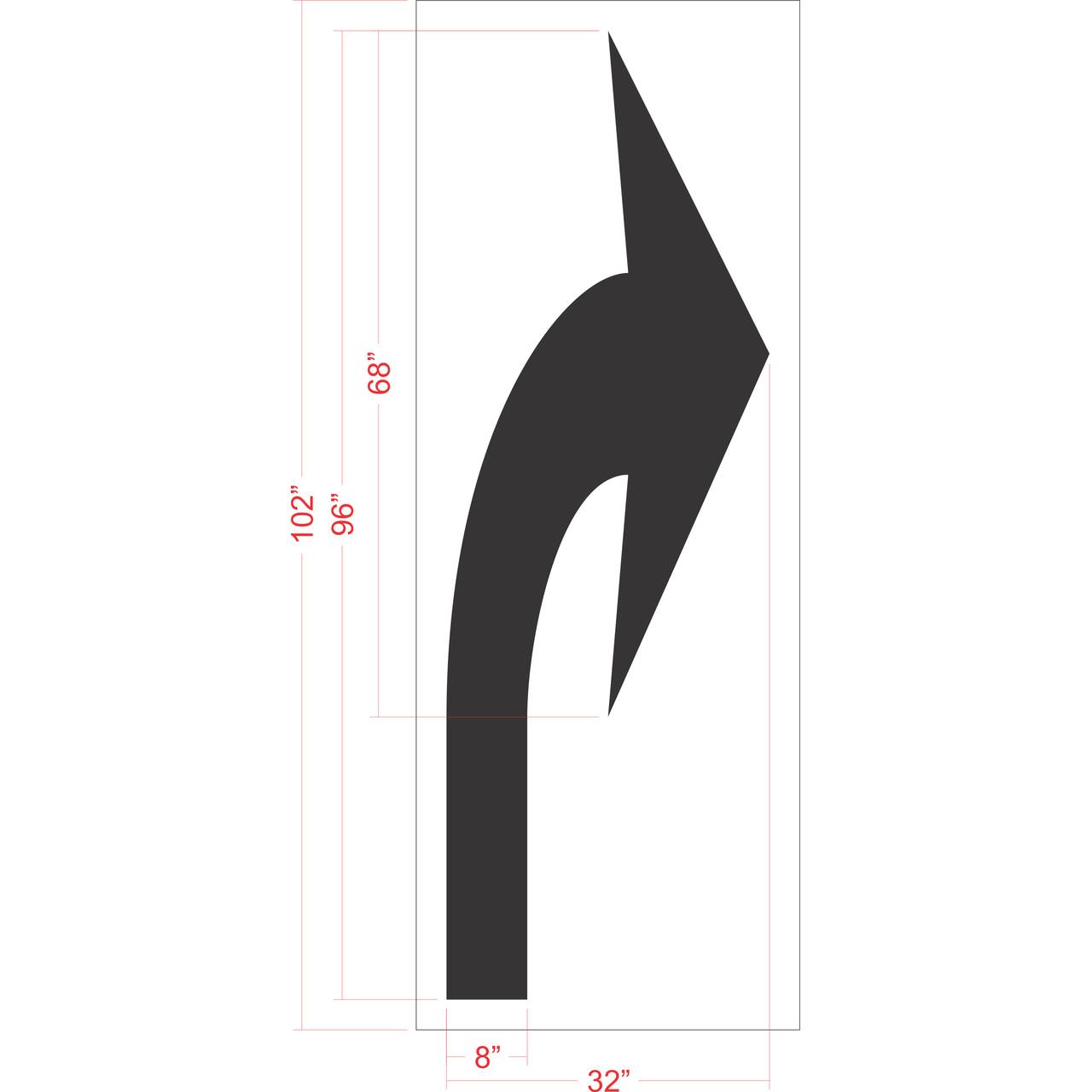

Specifications

Tail Stroke 8"
Stencil Width 32"
Stencil Height 96"
Material Width 38"
Material Height 102"
Availability In Stock - Ships Same Day*






Country of origin: USA

Warranty: Our stencils are guaranteed to be free of defects that will impede the use of the product.

Other Part Numbers

4343-096 5343-096 6343-096 7343-096

Selecting a Stencil Grade:

  • 1/8" (.125”) LDPE - PRO-Grade, our most common material, typically can be used thousands of times, and with proper care, they can last for many years. Lays Flat, and heavy enough to stay put while spraying up to 3000psi.
  • 1/16" (.063”) LDPE - What we call Light-Duty, this material is just as durable as its 1/8" counterpart, however, it is half the thickness and can be flimsy. We recommend this for stencils that aren't used every day.
  • 5/64” (.080”) ALUM - Aluminum can last almost forever, you can reuse it and abuse it. It will be ready to work today and in 10 years. The ridged 5052 Aluminum we use is also perfect for thermoplastic extruding, saving hundreds of Dollars per Legend. Shown here in .080” thickness, but it is also available in .190” (6061) which is harder, thicker, and stronger.
  • 1/4” (.025”) HDPE – The ultimate heavy-duty option for high-traffic pavement markings, designed specifically for demanding municipal, roadway, and commercial projects. Twice the thickness of our popular Pro-Grade .125" LDPE, this rigid High-Density Polyethylene material delivers exceptional stiffness to prevent sagging on large stencils, ensuring crisp, professional results even under repeated use.

Variant SKUs

  • 1/8" (.125") PRO-Grade LDPE SKU:5343-096
  • 1/16" (.063") Light-Duty LDPE SKU:4343-096
  • 5/64" (.080") 5052 Aluminum SKU:6343-096
  • 1/4" (.25" ) Municipal-Grade HDPE SKU:7343-096

Light-Duty (DuraLast) | 1/16 Inch (.063) | Low-Density Polyethylene (LDPE)

This material is just as durable as its 1/8" counterpart, however, it is half the thickness and can be flimsy.

Pro-Grade (MaxiLast) | 1/8 Inch (.125) | Low-Density Polyethylene (LDPE)

Our most popular material, typically can be used thousands of time, and with proper care, they can last for many years. Lays flat and heavy enough to stay put while spraying up to 3000 PSI.

Heavy-Duty | 1/4 Inch (.250) | High-Density Polyethylene (HDPE)

Ultimate heavy-duty option for high-traffic pavement markings, designed specifically for demanding municipal, roadway, and commercial projects. Twice the thickness of our popular Pro-Grade. The material delivers exceptional stiffness to prevent sagging on large stencils, ensuring crisp, professional results even under repeated use.

Industrial | 5/64 Inch (.080) | 5052 Rigid Aluminum

Aluminum can last almost forever, you can reuse it and abuse it. It will be ready to work today and in 10 years. The ridged aluminum we use is also perfect for thermoplastic extruding, saving hundreds of dollars. Shown here in .080" thickness, but it is also available in .190" (6061) which is harder, thicker, and stronger.
