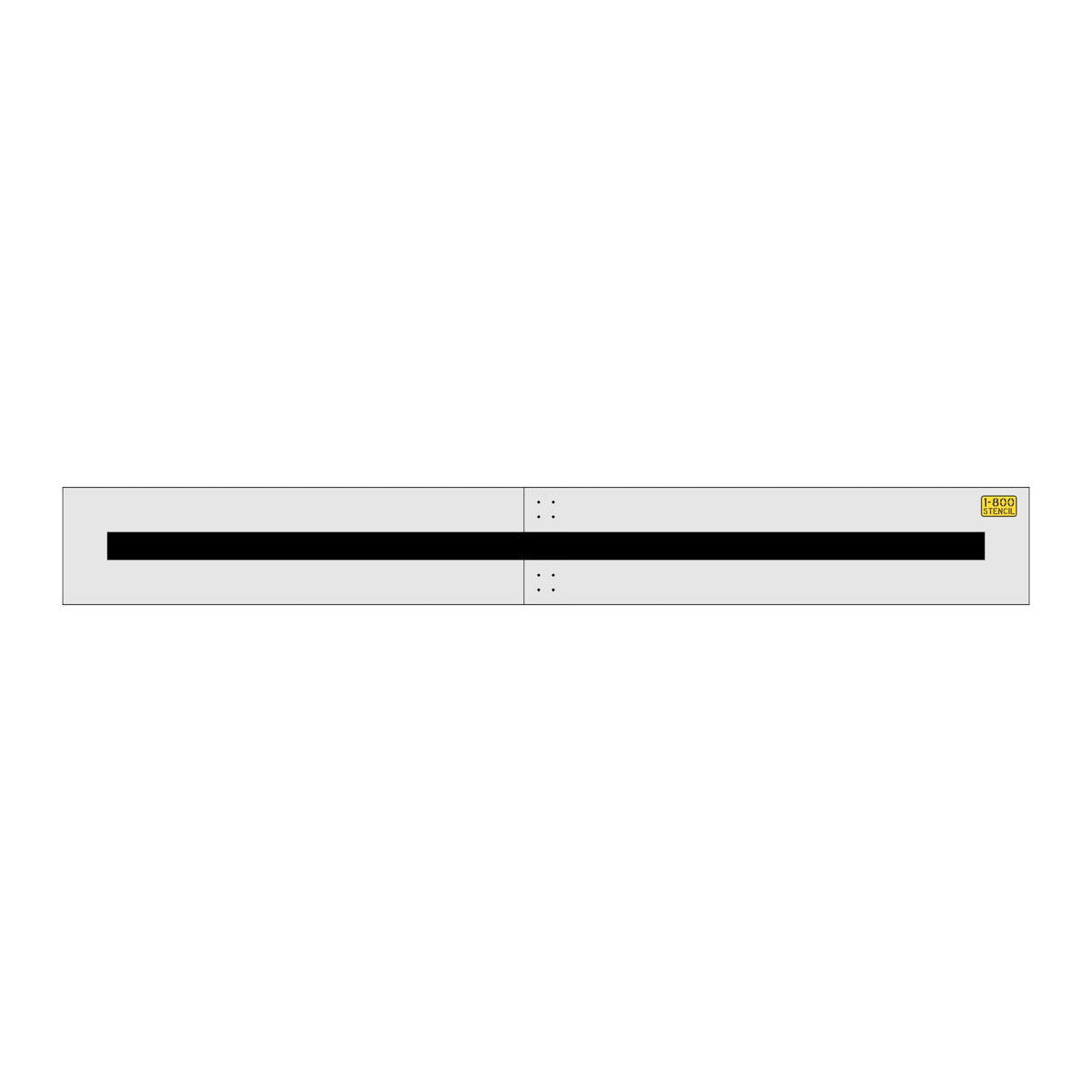

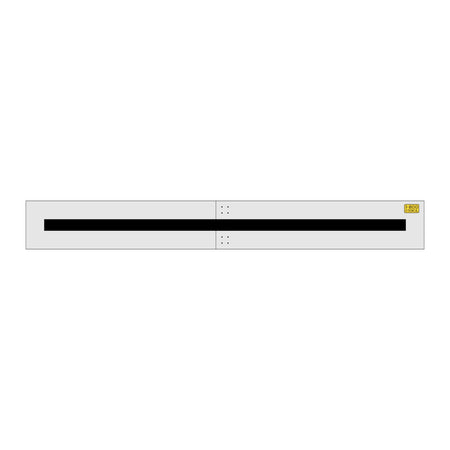

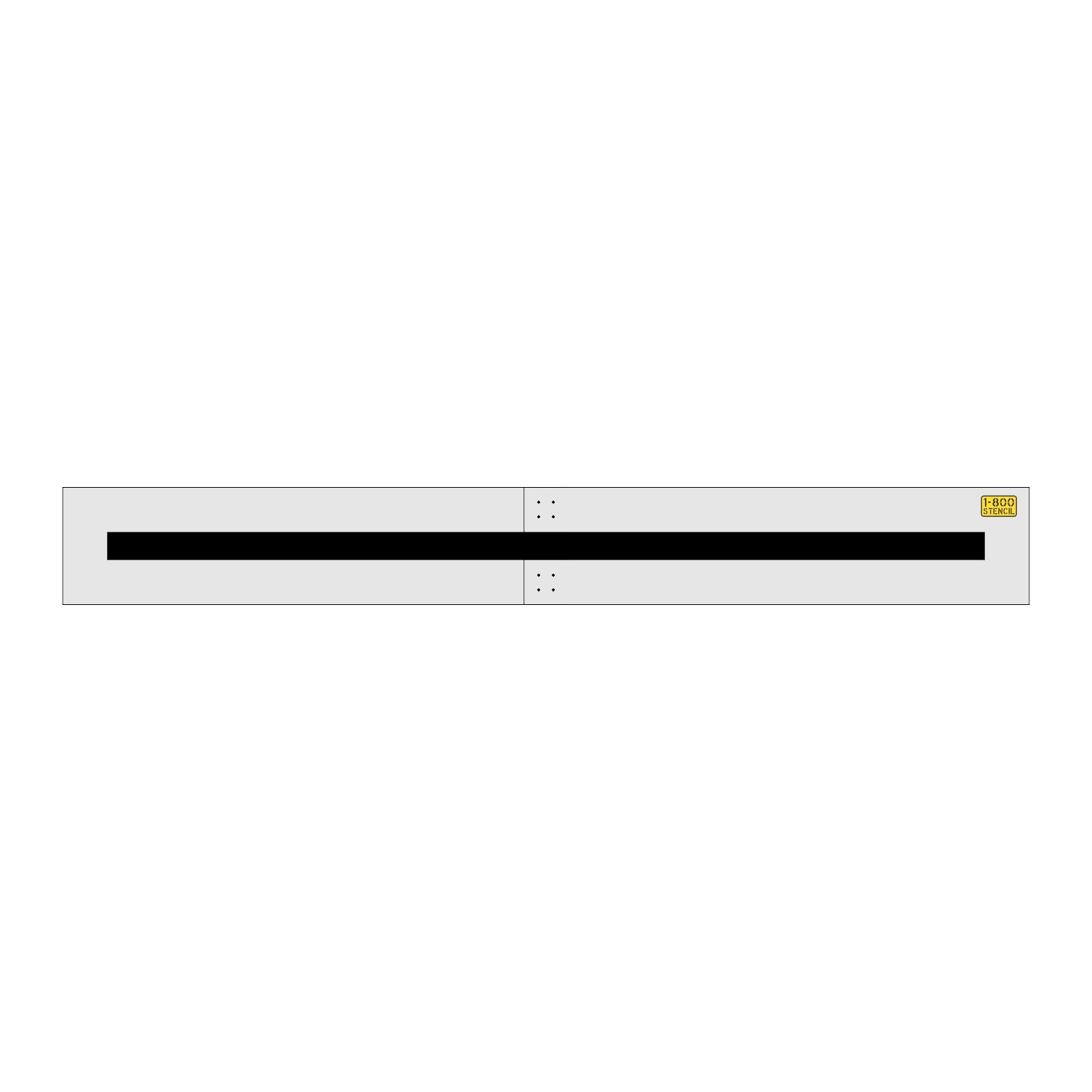

4"x10' North Carolina DOT Line Stencil

In stock
SKU: 108-5NC03
Regular price $76.00

4"x10' North Carolina DOT Line Stencil SKU: 5NC03

The 4 inch x 10 feet North Carolina DOT line stencil is designed to be used by anyone from a Professional Pavement Marking Contractor to a Small Business Owner that only has 3 parking spaces. This stencil work great with any type of paint spray, roll, or brush your own parking lot Today! As a professional, use this stencil to stripe between those pesky cars that were left in the parking lot, reducing or eliminating the need for a 2nd trip. This 4 inch by 10 feet North Carolina DOT Handicap is made specifically to meet the specifications for the Department of Transportation's Manual on Uniform Traffic Control Devices or MUTCD. All 1-800-Stencil’s are professional quality and made from either Light or Pro-Grade LDPE, Aluminum, or optional UHMW plastic to all last for years of professional use.

(North Carolina DOT Specifications (1205.01/Sheet 1)

Other North Carolina Stencils

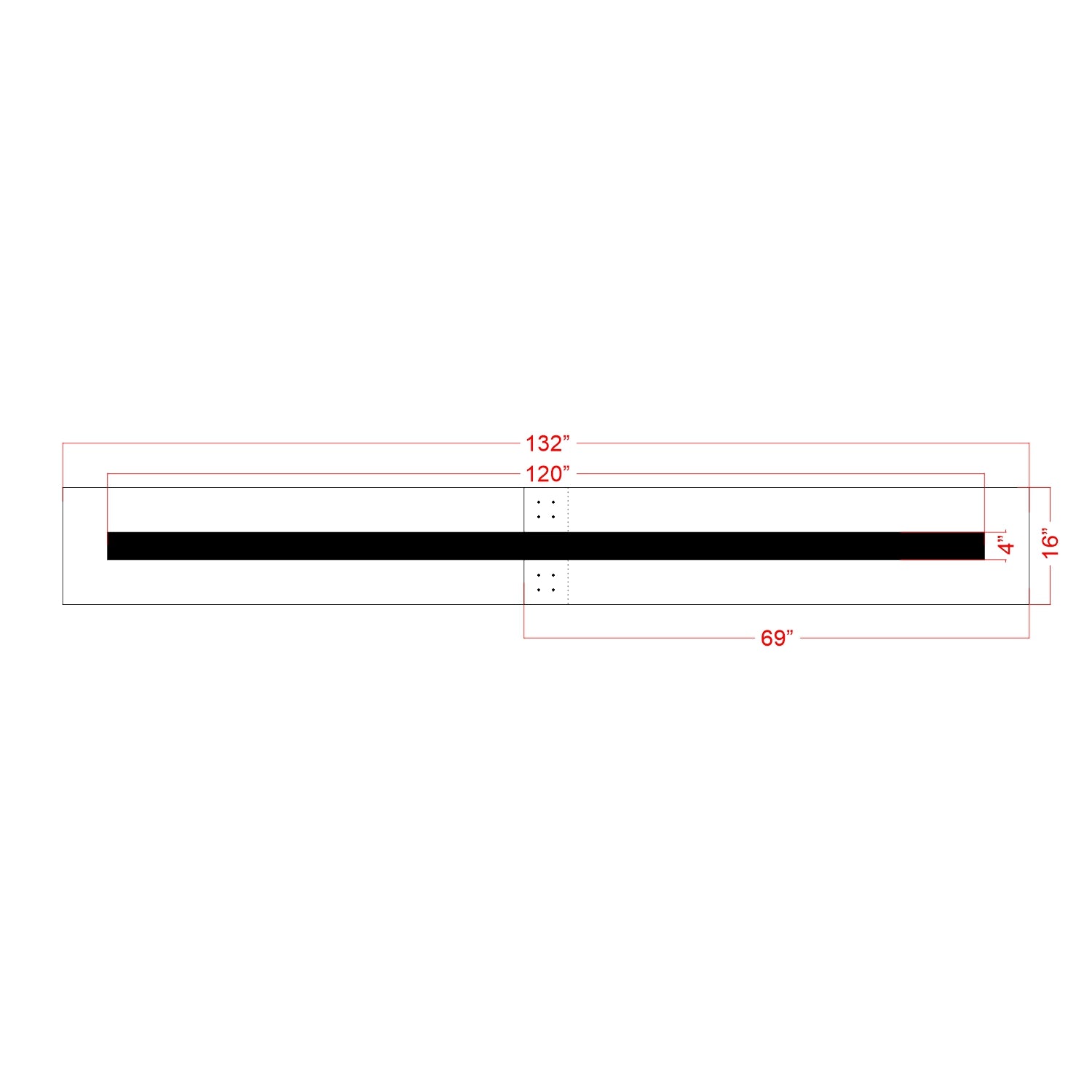

Specifications

Line Length 120" (10')
Line width 4"
Material Length 132"
Material Width 12"
Availability Usually Ships in 1-2 days or sooner*








Country of origin: USA

Warranty: Our stencils are guaranteed to be free of defects that will impede the use of the product.

Other Part Numbers

108-5NC0116-5NC03 080-5NC03 025-5NC03


Selecting a Stencil Grade:

  • 1/8" (.125”) LDPE - PRO-Grade, our most common material, typically can be used thousands of times, and with proper care, they can last for many years. Lays Flat, and heavy enough to stay put while spraying up to 3000psi.
  • 1/16" (.063”) LDPE - What we call Light-Duty, this material is just as durable as its 1/8" counterpart, however, it is half the thickness and can be flimsy. We recommend this for stencils that aren't used every day.
  • 5/64” (.080”) ALUM - Aluminum can last almost forever, you can reuse it and abuse it. It will be ready to work today and in 10 years. The ridged 5052 Aluminum we use is also perfect for thermoplastic extruding, saving hundreds of Dollars per Legend. Shown here in .080” thickness, but it is also available in .190” (6061) which is harder, thicker, and stronger.
  • 1/4” (.025”) UHMW – Preferred by municipalities for its superior strength, it can be loaded with many coats of paint and remain rigid without sagging. Ultra-High-Molecular-Weight Polyethylene is highly resistant to corrosive chemicals and highly resistant to abrasion. Shown here in 1/4” thickness, but also available in 3/8” or 1/2” versions.
