240 Inch Wisconsin DOT Railroad Crossing Stencil Set

In stock
SKU: 108-5WI25
$638.00

240" Wisconsin DOT Railroad Crossing Stencil Set - SKU: 1800-5WI25

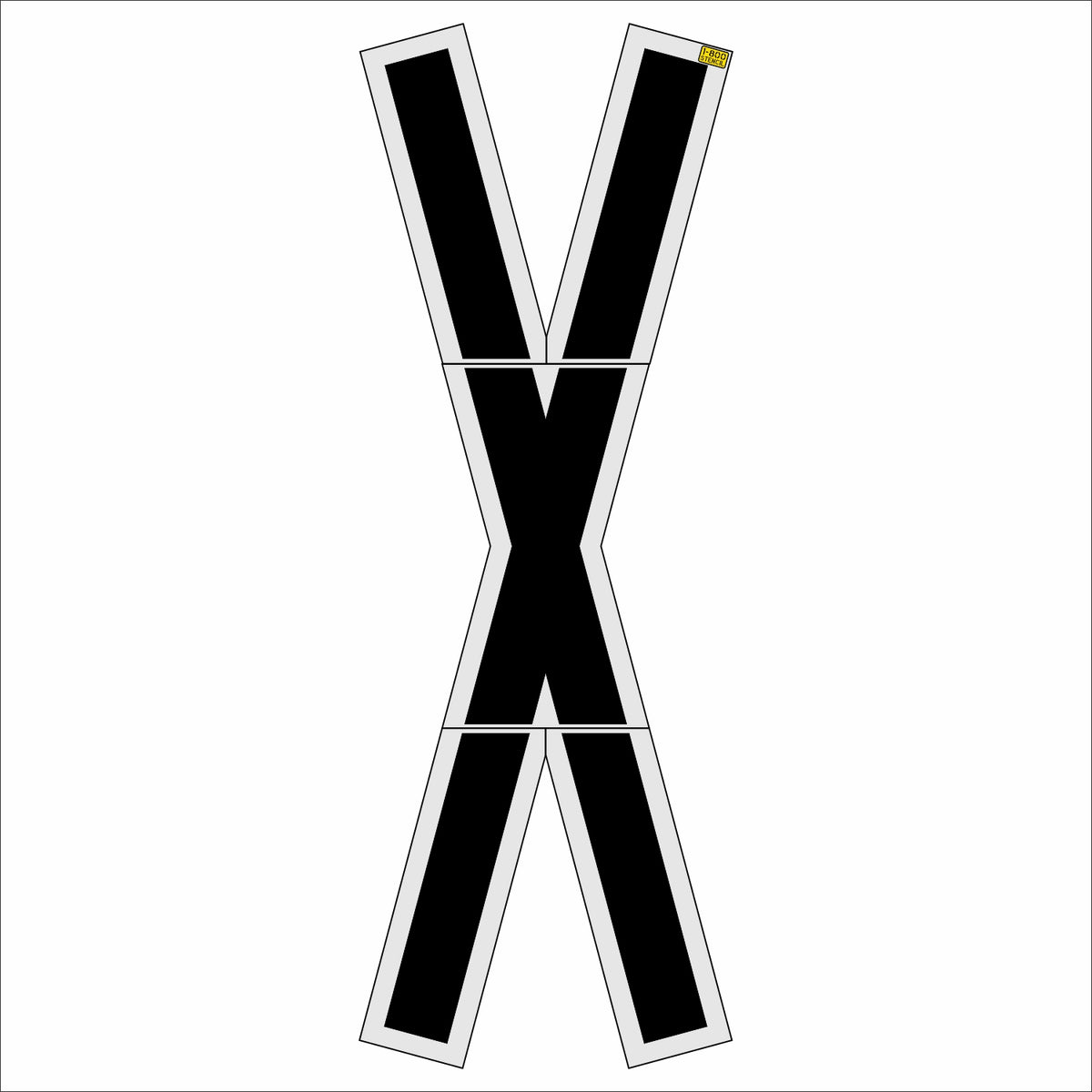

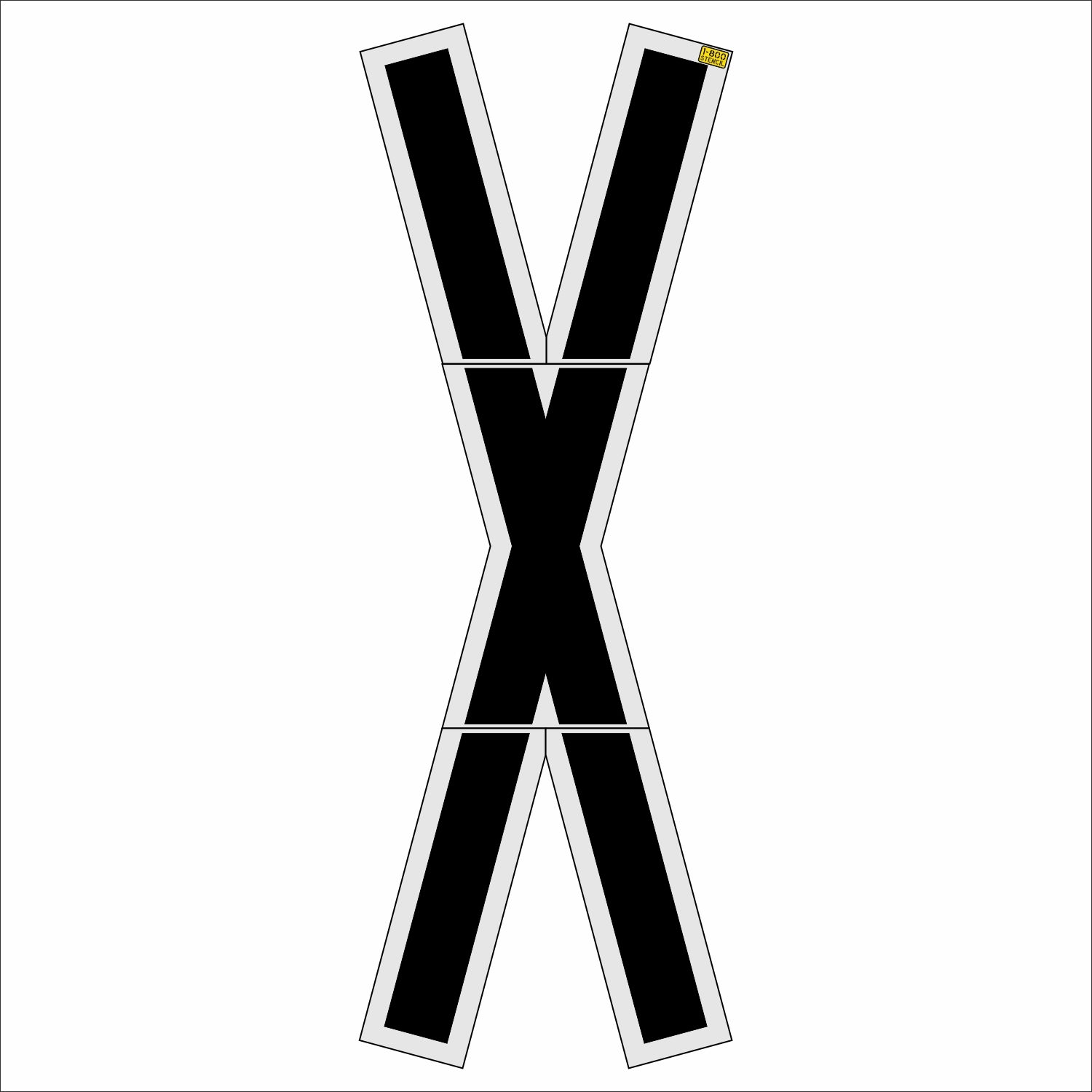

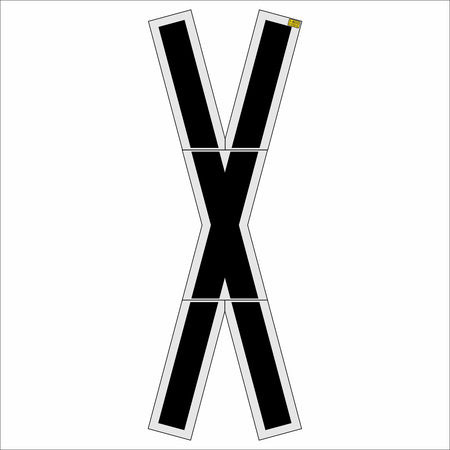

Ensure full DOT compliance on highway, municipal, and industrial pavement marking projects with this official-spec 240-inch Wisconsin Railroad Crossing stencil kit. Designed to meet state DOT standards, this specialized layout set includes the complete 20-foot "X" body and connecting limbs to form high-visibility railway advance warning symbols on asphalt and concrete roadways.

Please note: This kit includes the main "X" body and extending limbs only. The "R" characters are sold separately.

Engineered for highway contractors and commercial striping crews, this multi-piece kit lays flat, aligns seamlessly, and delivers razor-sharp paint lines on large-scale pavement jobs.

Key Features:

  • Official 240-Inch (20-Foot) DOT Layout: Formatted precisely to Wisconsin DOT advance railroad crossing warning specifications.

  • Modular Multi-Piece Assembly: Features interlocking or easily alignment-matched sections for the main "X" body and limbs, allowing quick setup across wide lanes.

  • Laser-Cut Precision Borders: Wide margins contain heavy paint overspray to prevent bleed and keep highway markings clean and crisp.

  • Heavy-Duty LLDPE Construction: Flexible, chemical-resistant plastic conforms to uneven road surfaces and withstands repeated commercial use.

  • Fast Flex-and-Peel Cleanup: Non-porous material allows dried traffic paint to easily flex and peel off for quick maintenance on the job site.

Ideal Uses:

  • Municipal roadway, county highway, and state DOT railroad crossing advance warnings

  • Industrial park rail spurs, intermodal facility lanes, and private railway access roads

  • Large-scale pavement re-striping, line refresh projects, and new road construction

Specifications

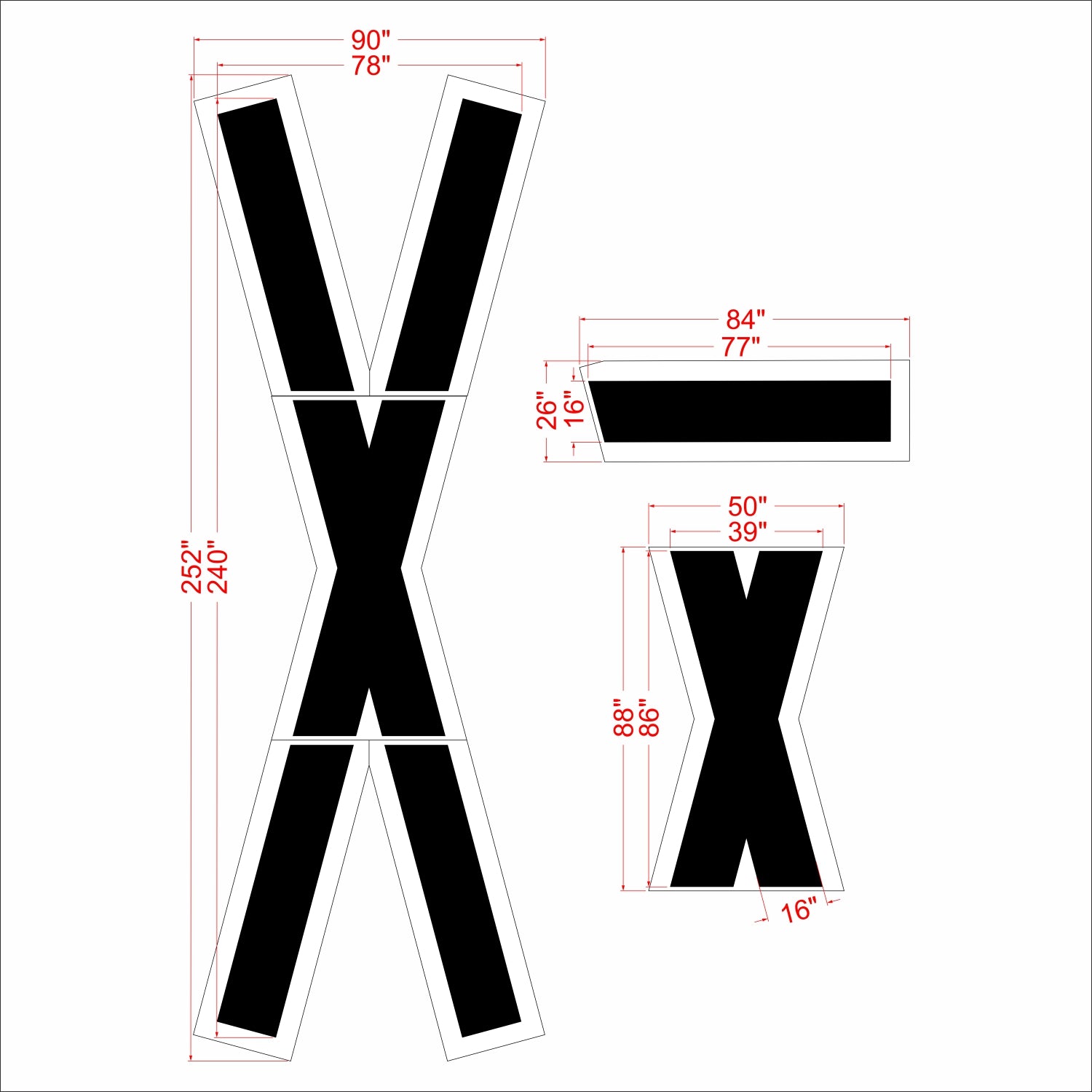

Stencil Width 78"
Stencil Height 240"
Material Width 90" total
Material Height 252" total
Stroke Width
 16"

    (Wisconsin DOT Specifications (15C09-13a)

    Other Wisconsin Stencils



      Variant SKUs

      • 1/8" (.125") PRO-Grade LDPE SKU:108-5WI25
      • 1/16" (.063") Light-Duty LDPE SKU:116-5WI25
      • 5/64" (.080") 5052 Aluminum SKU:080-5WI25
      • 1/4" (.25" ) Municipal-Grade HDPE SKU:025-5WI25

      Light-Duty (DuraLast) | 1/16 Inch (.063) | Low-Density Polyethylene (LDPE)

      This material is just as durable as its 1/8" counterpart, however, it is half the thickness and can be flimsy.

      Pro-Grade (MaxiLast) | 1/8 Inch (.125) | Low-Density Polyethylene (LDPE)

      Our most popular material, typically can be used thousands of time, and with proper care, they can last for many years. Lays flat and heavy enough to stay put while spraying up to 3000 PSI.

      Heavy-Duty | 1/4 Inch (.250) | High-Density Polyethylene (HDPE)

      Ultimate heavy-duty option for high-traffic pavement markings, designed specifically for demanding municipal, roadway, and commercial projects. Twice the thickness of our popular Pro-Grade. The material delivers exceptional stiffness to prevent sagging on large stencils, ensuring crisp, professional results even under repeated use.

      Industrial | 5/64 Inch (.080) | 5052 Rigid Aluminum

      Aluminum can last almost forever, you can reuse it and abuse it. It will be ready to work today and in 10 years. The ridged aluminum we use is also perfect for thermoplastic extruding, saving hundreds of dollars. Shown here in .080" thickness, but it is also available in .190" (6061) which is harder, thicker, and stronger.
