153" North Carolina DOT Three Way Arrow Stencil

In stock
SKU: 108-5NC13
$830.00

153" North Carolina DOT Three Way Arrow Stencil SKU: 5NC13

Pavement markings play a crucial role in directing, cautioning, and regulating traffic through the use of words, symbols, and arrows. These visible markings on the road surface are essential for guiding drivers, warning them of potential hazards, and ensuring proper traffic flow. That is why this 153" North Carolina DOT Three Way Arrow Stencil is made specifically to meet the specifications for the Department of Transportation's Manual on Uniform Traffic Control Devices or MUTCD. All 1-800-Stencil’s are professional quality and made from either Light or Pro-Grade LDPE, Aluminum, or optional UHMW plastic to all last for years of professional use.

    (North Carolina DOT Specifications (1205.08/Sheet 1)

    Other North Carolina Stencils

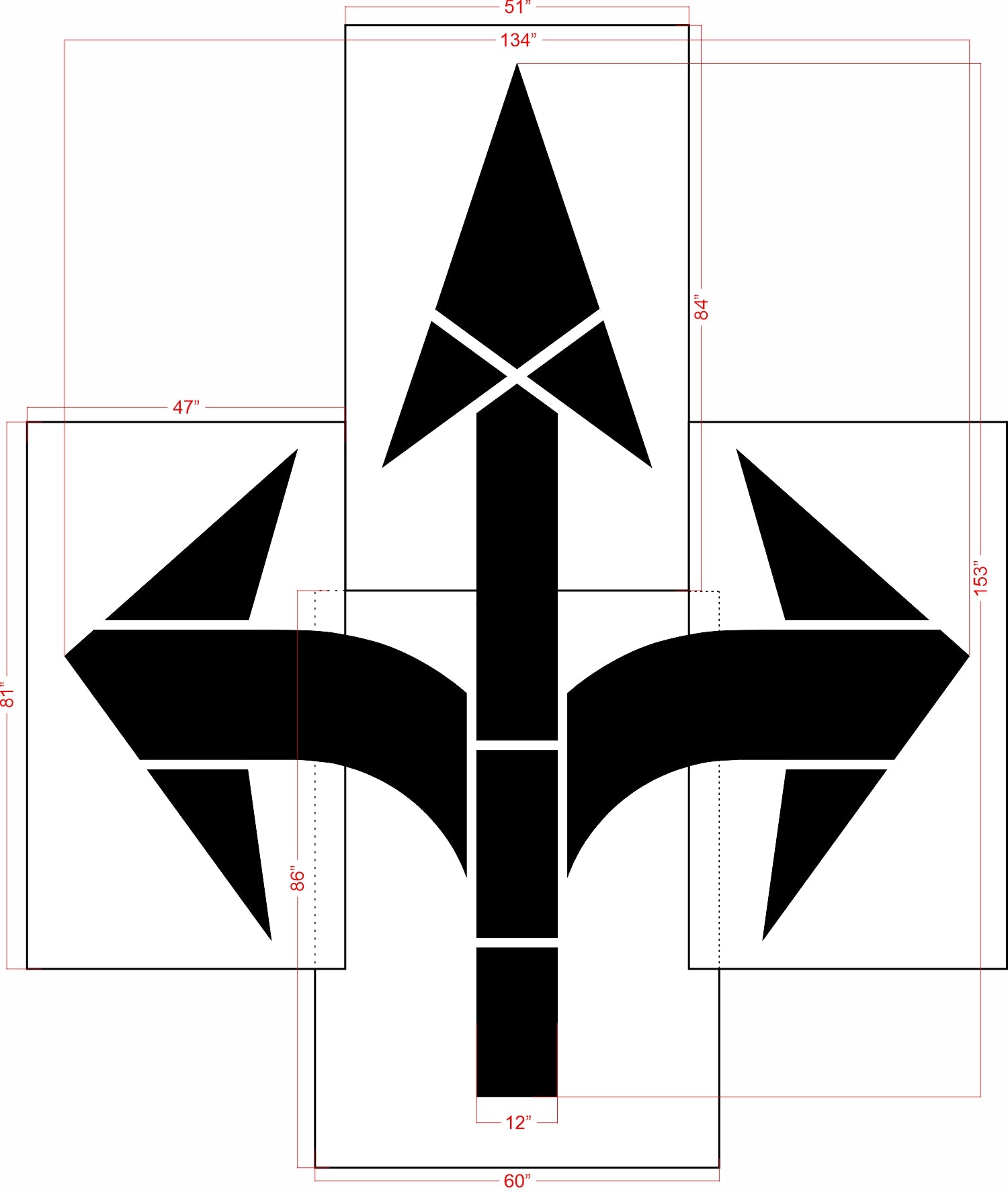

    Specifications

    Tail Stroke 12"
    Stencil Width

    134"
    Stencil Height 153"
    Material Width Varies (see images)
    Material height Varies (see images)
    Availability Usually Ships in 1-2 days or sooner*











    Country of origin: USA

    Warranty: Our stencils are guaranteed to be free of defects that will impede the use of the product.

    Other Part Numbers

    108-5NC13 116-5NC13 080-5NC13 025-5NC13


    Selecting a Stencil Grade:

    • 1/8" (.125”) LDPE - PRO-Grade, our most common material, typically can be used thousands of times, and with proper care, they can last for many years. Lays Flat, and heavy enough to stay put while spraying up to 3000psi.
    • 1/16" (.063”) LDPE - What we call Light-Duty, this material is just as durable as its 1/8" counterpart, however, it is half the thickness and can be flimsy. We recommend this for stencils that aren't used every day.
    • 5/64” (.080”) ALUM - Aluminum can last almost forever, you can reuse it and abuse it. It will be ready to work today and in 10 years. The ridged 5052 Aluminum we use is also perfect for thermoplastic extruding, saving hundreds of Dollars per Legend. Shown here in .080” thickness, but it is also available in .190” (6061) which is harder, thicker, and stronger.
    • 1/4” (.025”) UHMW – Preferred by municipalities for its superior strength, it can be loaded with many coats of paint and remain rigid without sagging. Ultra-High-Molecular-Weight Polyethylene is highly resistant to corrosive chemicals and highly resistant to abrasion. Shown here in 1/4” thickness, but also available in 3/8” or 1/2” versions.
