144" Georgia DOT EXIT Stencil

In stock
SKU: 108-5GA11
$790.00

144" Georgia DOT EXIT Stencil SKU: 1800-5GA11

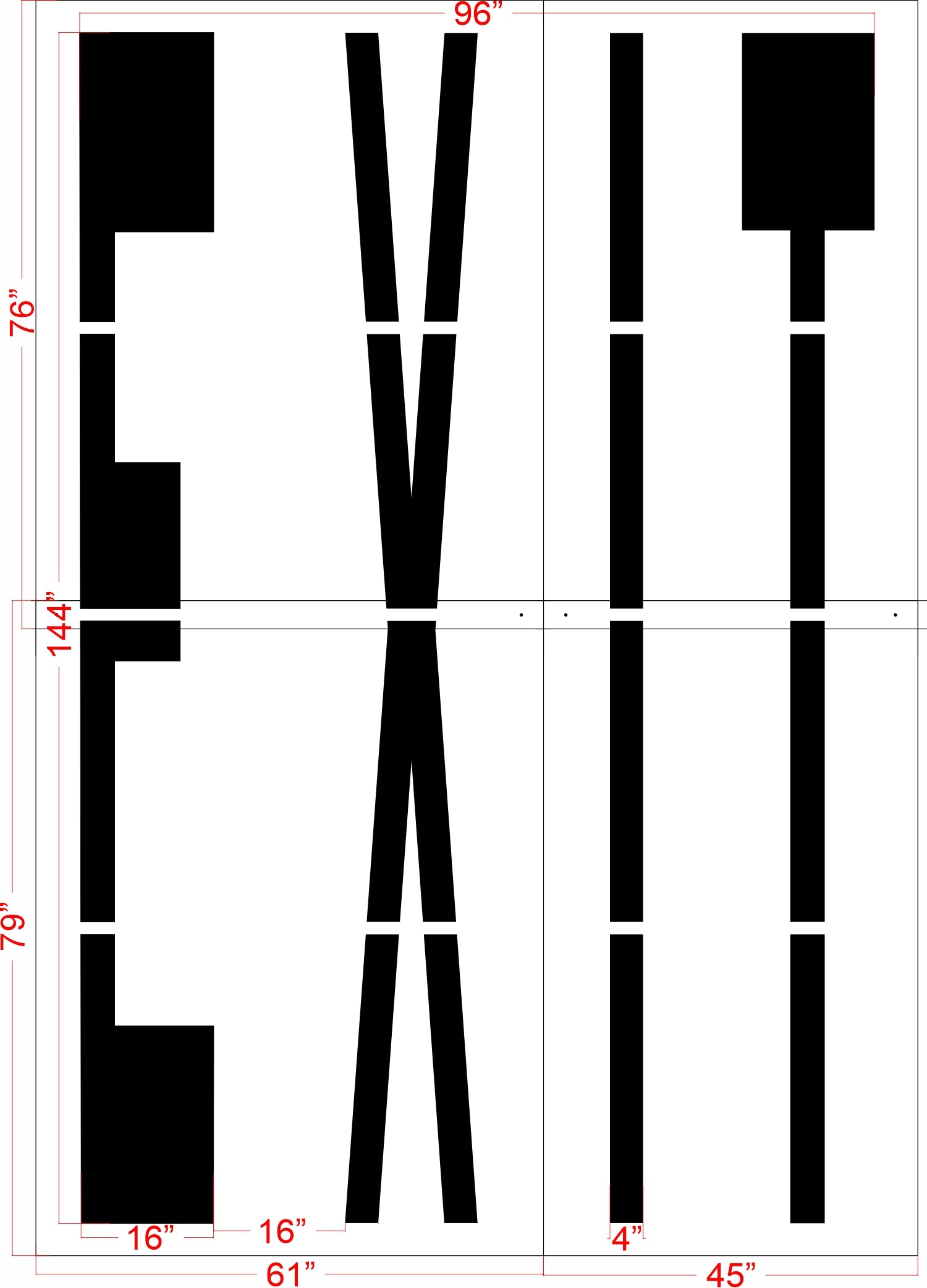

This 144" Georgia DOT EXIT Stencil can be used for large projects like highways or roads. The stroke for each of the letters is 4" wide, and they all have a distance of 16" between them. Each of the characters is 16" wide. The flexibility of the stencil material allows it to be stored just about anywhere and be cleaned very easily. These 144" Stencils is made specifically to meet the specifications for the Department of Transportation's Manual on Uniform Traffic Control Devices or MUTCD.

(Georgia DOT Specifications (T-13C)

Other Georgia Stencils

Specifications

Stencil Width 96"
Stencil Height 144"
Material Width 52" for each 2 pieces
Material Height Varies (see images)
Stroke Width 4"
Space Between Letters 16"
Availability In Stock - Ships Same Day*



Country of origin: USA

     Warranty: Our stencils are guaranteed to be free of defects that will impede the use of the product.

      Other Part Numbers

     116-5GA11  108-5GA11 080-5GA11 025-5GA11





Selecting a Stencil Grade:

·         1/8" (.125”) LDPE - PRO-Grade, our most common material, typically can be used thousands of times, and with proper care, they can last for many years. Lays Flat, and heavy enough to stay put while spraying up to 3000psi.

·         1/16" (.063”) LDPE - What we call Light-Duty, this material is just as durable as its 1/8" counterpart, however, it is half the thickness and can be flimsy. We recommend this for stencils that aren't used every day.

·         5/64” (.080”) ALUM - Aluminum can last almost forever, you can reuse it and abuse it. It will be ready to work today and in 10 years. The ridged 5052 Aluminum we use is also perfect for thermoplastic extruding, saving hundreds of Dollars per Legend. Shown here in .080” thickness, but it is also available in .190” (6061) which is harder, thicker, and stronger.

·         1/4” (.025”) UHMW – Preferred by municipalities for its superior strength, it can be loaded with many coats of paint and remain rigid without sagging. Ultra-High-Molecular-Weight Polyethylene is highly resistant to corrosive chemicals and highly resistant to abrasion. Shown here in 1/4” thickness, but also available in 3/8” or 1/2” versions.
